jrt gear units&gearmotors
jrtr  helical inline gearmotors

model:17~187

ratio:3.37~289.74

input power:0.12~250 kw

output torque:2.4~56494 n.m

jrtf  parallel shaft-helical gearmotors

model:37~167

ratio:3.77~281.71

input power:0.12~250kw

output torque:3.5~37125n.m

jrtk  helical-bevel gearmotors

model:37~187

ratio:3.98~197.37

input power: 0.12~200kw

output torque:10~62800n.m

jrts  helical-worm gearmotors

model:37~97

ratio:6.8~288

input power: 0.12~22kw

output torque:11~4900n.m

jcm  frequency conversion gearmotor

size:0004~0075

power:0.37~7.5

ingress protection: ip54 ~ip65

mains supply:3x380~440vac

out frequency :0~200hz

jrtr  helical inline gearmotors

model:17~187

ratio:3.37~289.74

input power:0.12~250 kw

output torque:2.4~56494 n.m

jrtf  parallel shaft-helical gearmotors

model:37~167

ratio:3.77~281.71

input power:0.12~250kw

output torque:3.5~37125n.m

jrtk  helical-bevel gearmotors

model:37~187

ratio:3.98~197.37

input power: 0.12~200kw

output torque:10~62800n.m

jrts  helical-worm gearmotors

model:37~97

ratio:6.8~288

input power: 0.12~22kw

output torque:11~4900n.m

jcm  frequency conversion gearmotor

size:0004~0075

power:0.37~7.5

ingress protection: ip54 ~ip65

mains supply:3x380~440vac

out frequency :0~200hz

  • module combination figure

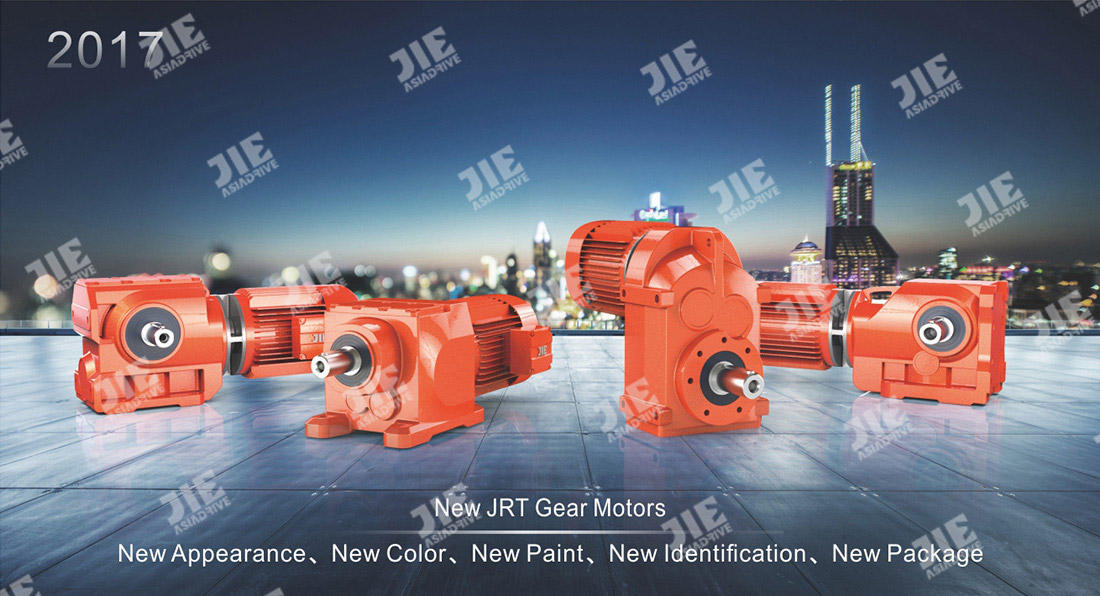

  • product highlights

    beautiful appearance, no oil leakage, low noise, fast delivery, intellectualization, maintenance-free

    seismic and noise reduction design is adopted for the box body and modification technology for gears.

    applied in warehousing logistics, tire rubber, environmental protection, chemical fiber and other industries

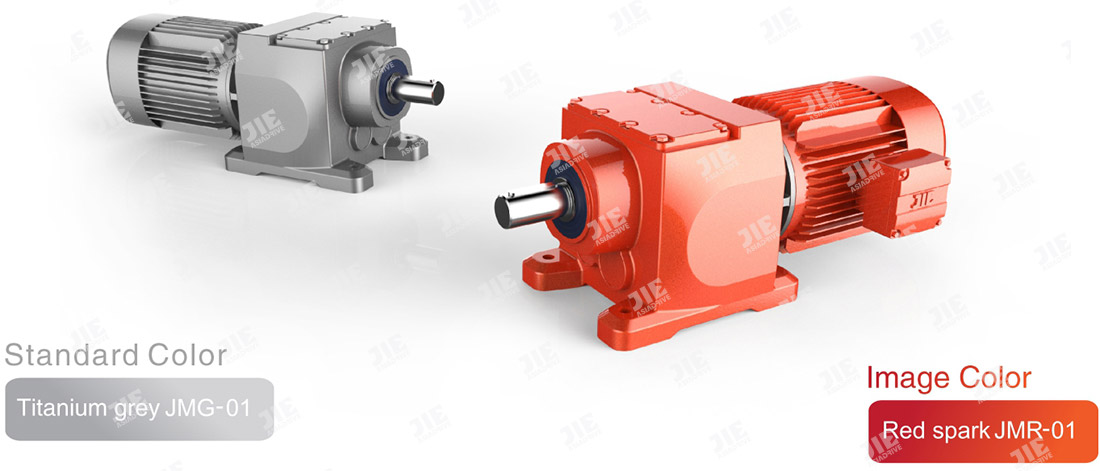

    image color,standard color

    jie production color system includes image color、standard color and optional color.the image color is typical solution combined with red apark and titanium grey.the standard color is the main promotion color"titanuum grey".it is the neutral color which can be integrated into all kind of applicationg scene and increase the increase the integrality of reducer and machine.

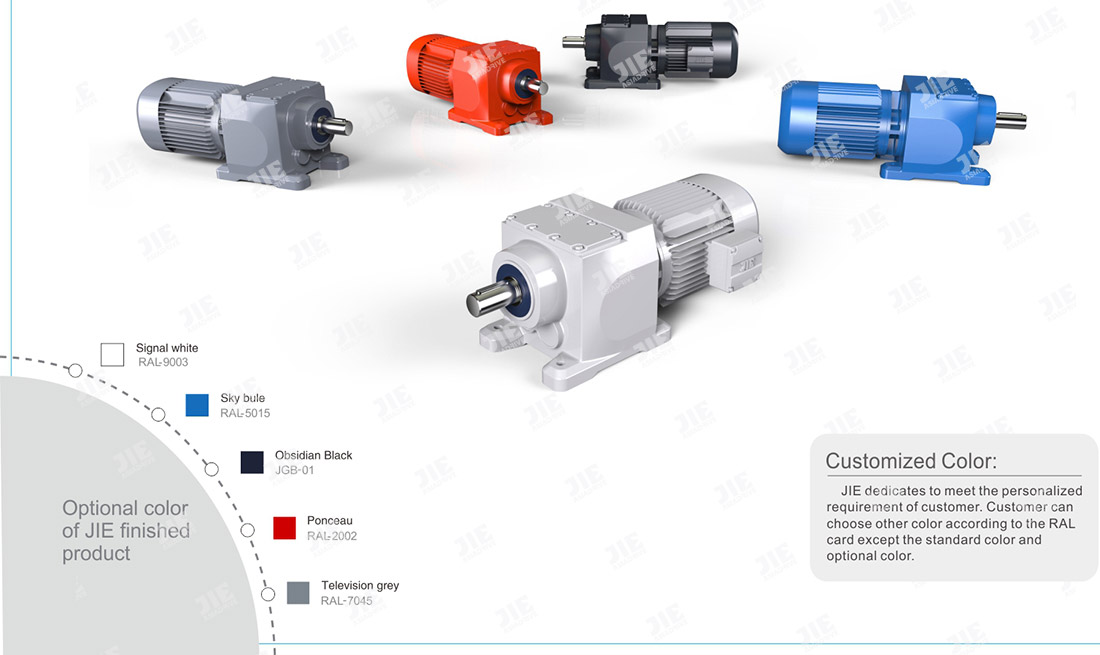

    the optional color

    jie can provide abundant color solutions:signal white,sky blue,obsidian, black,ponceau,televison grey.customer can select the color by requirement.

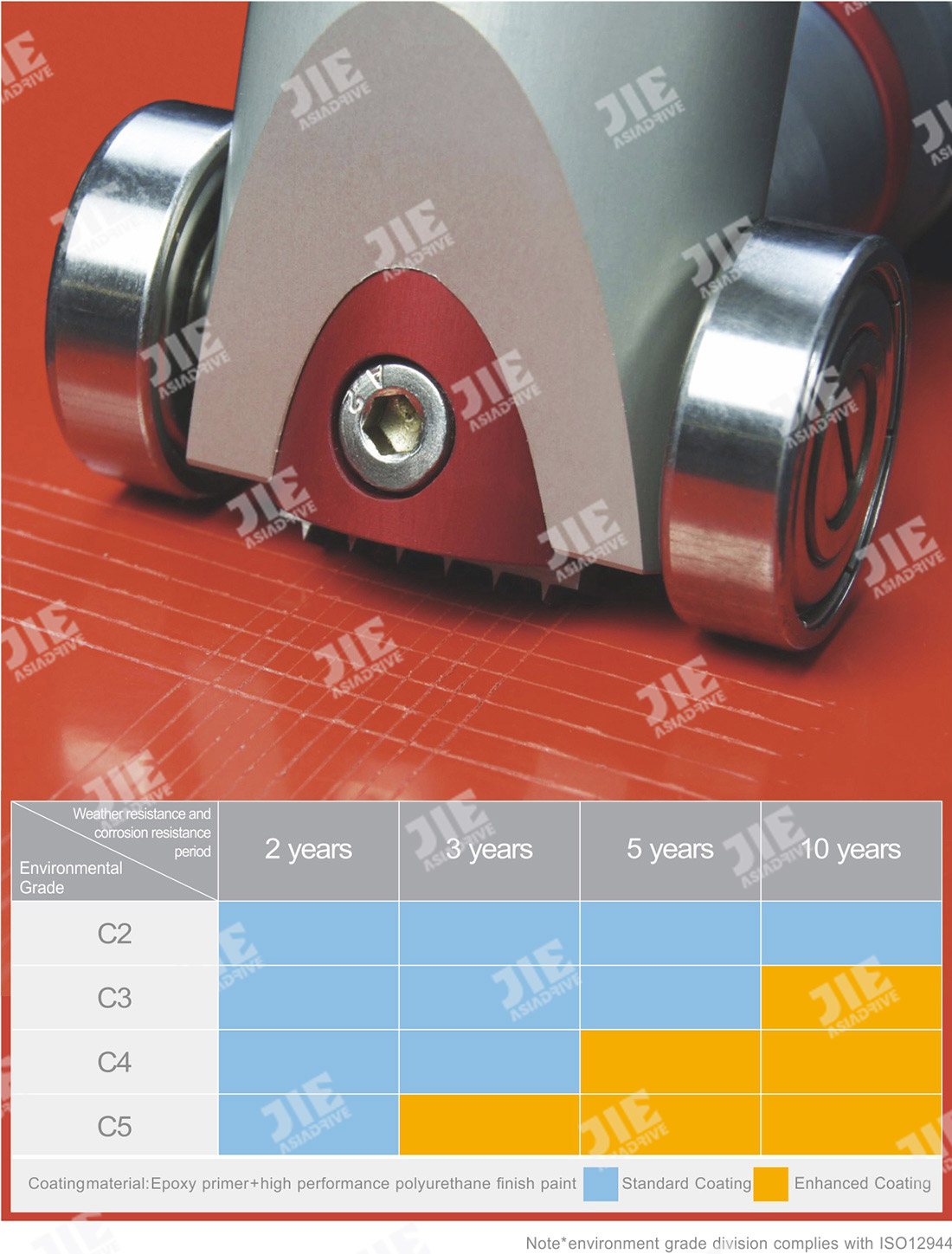

    paint coating

    new coating chuooses green paint according with the national enviromental protection requirement. the poisonous substances like voc、tdi、benzene/methylbenzene、xylene、heavy metals are not included inside paint.the paint has strong adhesive force,weather resistance,corrosion resisitance and it can be applied in ordinary outdoor medium corrosion environment and all kind of indoor operation condition.and the strengthen coating system can adapt the heavy corrosion environment.

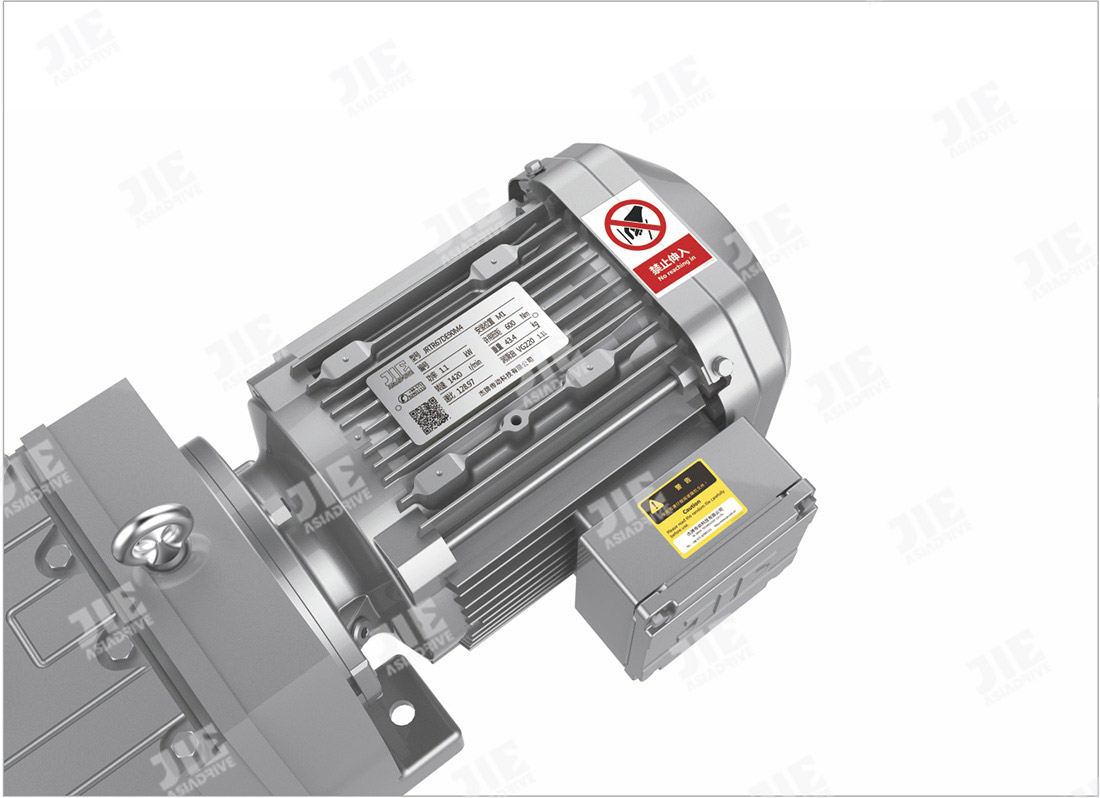

    identification nameplate

    new product adopt new nameplate identification system of jie with the stainless steel laser printing technology and product qr code through which the product and sales service information can be quickly consulted.

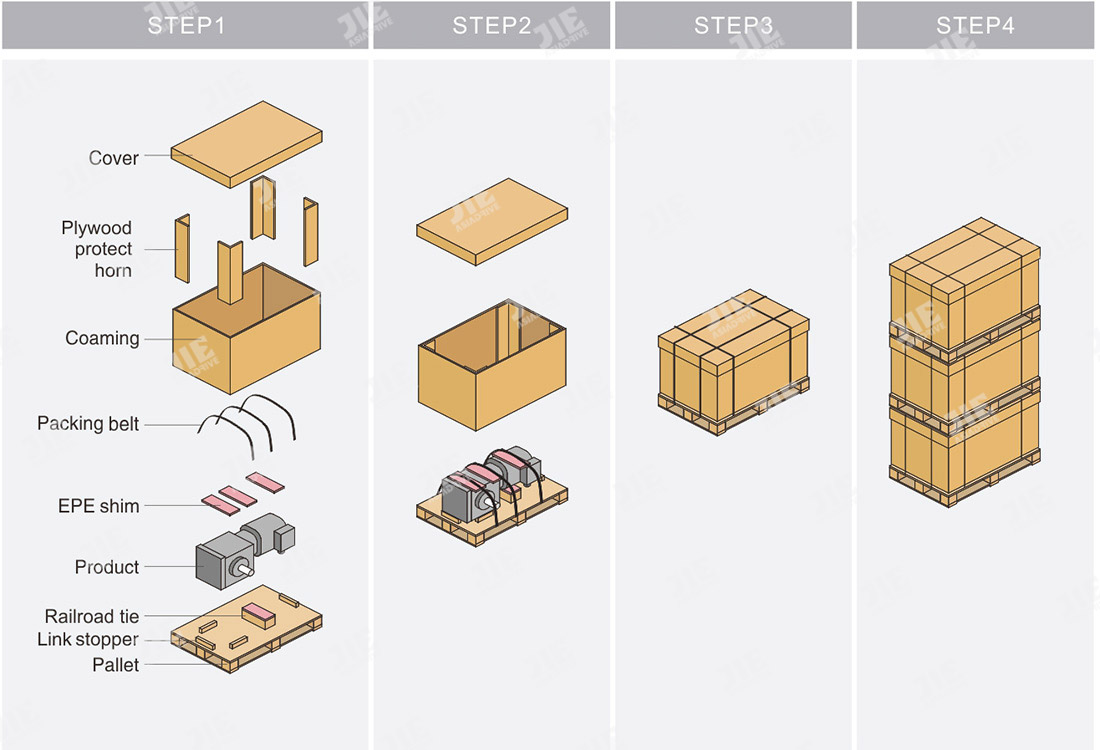

    package pattern

    new product adopt new package solution,more sturdy and durable.the package can be transported by truck and container.

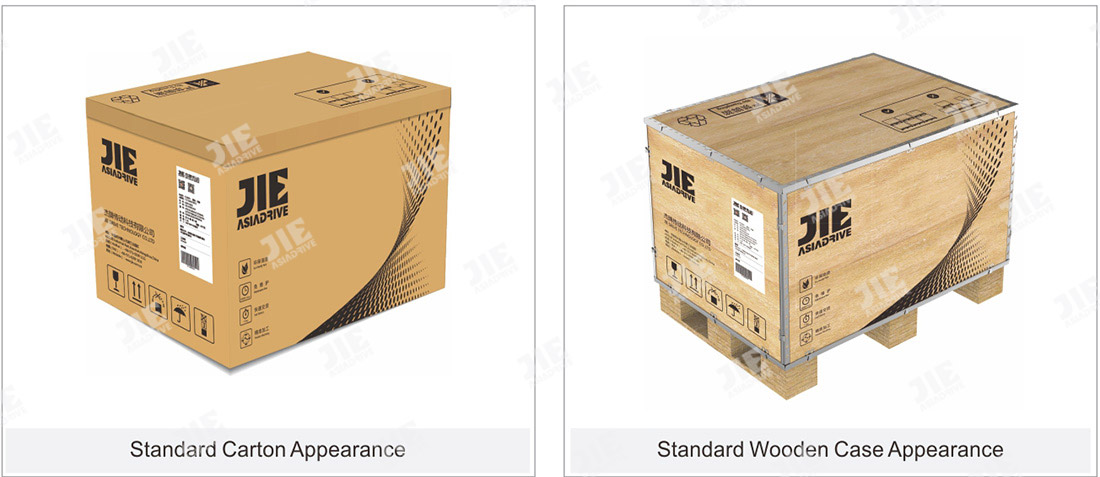

    packaging external appearance

    the packages are sorted into carton and wooden case according with the material.the standard package printing content includes jie brand information,package specification,transportation and warehousing standard icon,product information and the product highlight icon.
